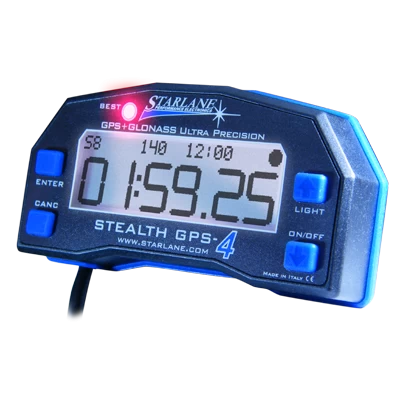

STEALTH GPS4-LITE 10HZ GPS LAP TIMER

Starlane Stealth GPS-4 Lite – GPS Laptimer

NEW VERSION WITH DOUBLE CONSTELLATION GPS+GLONASS RECEIVER ALLOWING UNMATCHED PRECISION LEVELS, WITH SPECIAL BLUE SILICONE BUTTONS AND GASKETS FOR A FRIENDLY TOUCH AND EXTRA SEALING.

10hz GPS laptimer with intermediates – Ideal Time – GSP Speed – Hour Meter – Data Download to every USB Pendrive.

GPS-4-Lite has the same hardware as GPS-4X but will download only the time table and max lap speeds table, it has no track map or any graphs recording feature. Only the GPS-4X has track map and graph recording feature.

The first and sole gps laptimers in the world totally “rider and pc independent” for the finish line and intermediates positioning.

If you don’t want to use your computer or press buttons on the track, the safd-2 feature (starlane automatic finish line detection), will split automatically the track after the first 2 laps run, allowing you to see your laptimes and intermediates from the very first session without any action on the laptimer.

With the new S.E.P.L.A. (Starlane Enhanced Precision Laptiming Algorithm) feature: a new laptiming algorithm allowing very hi laptiming precision also in conditions of not good data on the official GPS signal.

Upgrading Stealth GPS-4 Lite to GPS-4X you must visit the Starlane Upgrade Page to activate Data Acquisition and Track Mapping full features, as well as the possibility to dialogue with RID optional expansion modules. This upgrade is a cost of 105Euro available from Starlane via Paypal. Click Here for Upgrade Page.

STEALTH GPS- 4 LITE allows the laptimes and max speed of every lap download directly on your USB pendrive, with this solution you can enjoy it without bringing your computer on the track area. Digirace-MMX software will automatically recognize your USB pendrive and the new sessions to be downloaded.

Stealth GPS-4 Lite can be upgraded online to accudire the possibility to be connected to the optional CAN BUS expansion module that allows the acquisition from external sensors (eg. throttle, gear, RPM, etc.), making your laptimer a data acquisition system.

STEALTH GPS-4 LITE FEATURES

ATTENTION: THE LITE VERSION DOESN’T RECORD TRAJECTORIES AND DOESN’T SUPPORT RID EXPANSION MODULES TILL YOU UPGRADE IT TO FULL VERSION.

1) DOUBLE CONSTELLATION GPS+GLONASS RECEIVER AND ANTENNA BUILT IN THE INSTRUMENT:
the Stealth shock-proof ABS body accommodates the new double constellation receiver which uses in symbiosis the american GPS and the russian GLONASS satellite systems. This solution increases dramatically the precision due to the vero high number of satellite involved in instantaneous position, speed, trajectory and lap time determination.

2) YOU CAN SAY GOOD-BYE TO ALL UNPRACTICAL INFRARED TRANSMITTERS ARRANGED ON THE PIT WALL:
the use of the GPS+GLONASS system intended to detect the lap time will make STEALTH GPS-4 LITE completely autonomous, requiring no beacon transmitters, such as the infrared ones used by old-generation systems.
Everything is getting much simpler. It is no longer necessary to arrange the transmitter and to recharge the battery, which is extremely annoying and unpractical, with the risk of forgetting it on the wall or having it stolen.

3) MANAGEMENT OF THE FINISH LINE AND 3 INTERMEDIATES:
you can set up the coordinates of 4 trigger lines (main finish line + 3 optional intermediates). Whenever you cross a finish line or an intermediate, STEALTH GPS-4 LITE will indicate the relative split time and store its value. You can therefore quickly evaluate your own performance even if you are driving along a part of the track far from the main straight stretch, which would be expensive and unpractical if you used any other type of lap timer.

4) INDICATION OF THE ACHIEVABLE IDEAL TIME:
by managing intermediates, STEALTH GPS-4 LITE can calculate the time a driver can ideally achieve for every single session. This function is obtained by adding the best sectorial times. This will help you understand the lap time you might have achieved if there had been no traffic in a specific point of the track or if you had done a lap on top of your absolute performance.

5) DOUBLE FUNCTION “BEST LAP” LED:
the “BEST LAP” LED will turn on if you have improved your previous lap and it will blink if the lap you have just done is the best of the session. This solution will supply the driver with all the information necessary for performance without any distraction.
If you have set up intermediate finish lines, the LED is also enabled whenever you cross an intermediate. This means that this instrument is extremely useful to realise without any distraction whether you are improving compared to the same intermediate time of the previous lap or whether you have just accomplished the best intermediate time of the session.

6) GPS SPEED MEASUREMENT:
the advantage of using a GPS+GLONASS system is also that you can measure the vehicle speed with the highest degree of accuracy without having to install any sensor on the vehicle. No user setup is required and, above all, any measurement is always accurate, not altered by the inclination of the vehicle or wheel spinning.

7) DOUBLE HOUR METER FOR THE PERFECT PERIODICAL MAINTENANCE OF THE VEHICLE:
STEALTH GPS-4 LITE has also got two hourmeters that can be separately reset for the periodical maintenance of the vehicle. Hour Meters are activated to receive the GPS speed signal. This solution can operate the hour Meters without any connection to vehicle harness.

8) LAPTIMES AND MAXIMUM SPEED DOWNLOAD TO USB PENDRIVE:
STEALTH GPS-4 LITE fits a wired USB socket, that can be easily positioned into the fairing, in which you can plug any USB flash memory.
This solution makes the system totally free form the computer, at the end of the track day you will just need to plug the USB pendrive and Stealth GPS-4 LITE will download the acquired laptimes and maximum speeds for each lap, that will be then analyzed directly into the software Digirace-MMX.

9) 999-LAP MEMORY WITH AUTOMATIC MANAGEMENT OF 99 TEST SESSIONS:
STEALTH GPS-4 LITE will automatically create a new session whenever you access the track. This means that you can analyse the times you have stored during the various sessions even at the end of the day without having to delete memory whenever you access the track. You can store the Date and Time of every single session as well as the total time, the intermediates, the maximum speed for every single lap.

10) CYCLICAL MEMORY MANAGEMENT:
with STEALTH GPS-4 LITE you will never face memory full issues because,in order to allow a continuous usage, it manages the available space by erasing automatically the oldest sessions when the memory is almost full.

11) STORAGE OF THE FINISH LINE COORDINATES OF THE TRACKS MOST USED:
you can store the coordinates acquired for the finish line of the tracks you are training on most frequently. You can file up to 16 tracks and easily call the finish line of the current track without having to reset it every time.

12) STEALTH GPS-4 LITE IS COMPLETE WITH A BACKLIT LARGE-SIZE GRAPHICAL DISPLAY:
this solution has provided for the development of a software unit that can analyse all stored data and set up all wished functions in an unequally user-friendly and immediate manner. The display is of a transflective type, which means maximum visibility also in the sunlight when backlighting is off.

13) EXTERNAL SUPPLY:
supplied by 12V vehicle battery or by optional cases for 9V batteries or optional batteries. Moreover, STEALTH GPS-4 is complete with powerful energy saving and self power-off functions the user can set up to make the best use of battery performance. It is supplied with a specific extension with eyelets for battery connection and with a connector on one side of the instrument for rapid disconnection.

14) WATER-RESISTANCE:
STEALTH GPS-4 is water resistant and it can also be used in case of rain.

Specifications:

Automatic lap timer with 1/100 second resolution
Double constellation 10Hz GPS+GLONASS detection system with aeronautical algorithms
Automatic finish line and intermediates positioning function without user intervention (SAFD-2)
Calculation of the achievable Ideal Time
Calculation and visualization of 3 Intermediates
Digital speed indicator
GPS speed indication
Max. speed = 350 Km/h or 218 Mph
Double hour counter for engine maintenance
Data download to every USB flash memory stick (stick non included)
Memory of 999 laps that can be managed in 99 sessions
Cyclical memory management with automatic erasing of the oldest sessions.
Storage of max. speed values for every single lap
Speed indication in Km/h or Mph
Settable self power-off
Settable energy saving functions
122×32 backlit graphical display
Water resistant
Dimensions: width 90 mm – height 45 mm – depth 18 mm
Supply: external vehicle 12Volts or optional 9Volts battery cases or optional batteries.
Universal installation
Upgradable online to Full version to activate trajectory recording and RID modules expandability
DigiRace-MMX software available for download
Intended use: motorbike – scooter

Content of the package for Stealth GPS-4 Lite (COD. CSTHGPS4LT):

N° 1 STEALTH GPS-4 LITE Instrument
N° 1 Elastic support kit
N° 1 Dual Lock Adhesive strap fastening kit
N° 1 Supply cable from 12V vehicle battery
N° 2 Plastic ties for USB socket fixing
N° 1 User Manual
