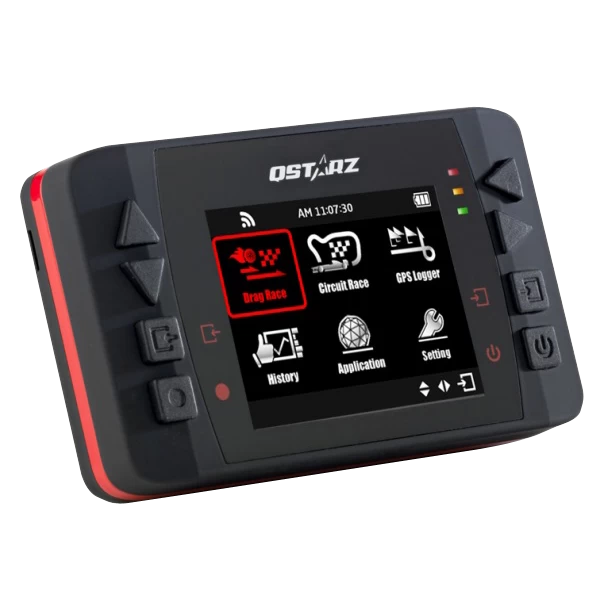

QSTARZ LT-Q6000 COLOUR GPS LAP TIMER

Unit supplied with QA-MX-02 – 3M Adhesive type Holder (for Motorcycle)

LT-Q6000 is an innovative and automatic Lap Timer based on GPS technology, which is the world’s first color display Lap timer device. It can record lap times, speed, position and acceleration, etc, and real-time compare the racing performance. LT-Q6000 fits all kinds of racing modes such as Drag Race, Circuit Race, Rally Race, or Performance test.

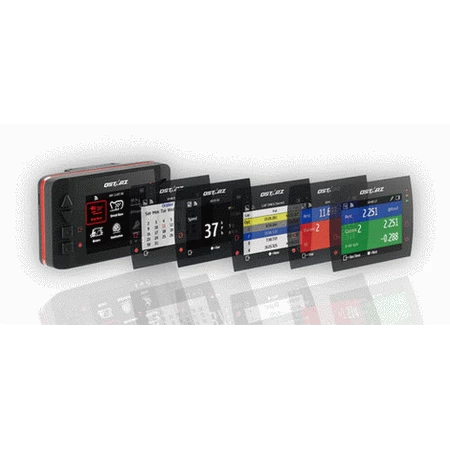

2.4” Color Display

Large 2.4” Color display to show and compare the racing data precisely and clearly. Real-time per split remind you are faster or slower than your best lap timing record by different color background. Green tells you are faster and Red means slower. This will be great for racers to adjust driving strategy in time.

Diversified Racing type

Whether you are drag racing, circuit racing, single lap racing, rally racing or taking performance test, no doubt LT-Q6000 will be your best lap timer. Diversified Drag Race modes are selected by speed/distance no matter 1/4 mile 1/8, 0-100m or 1-400m,etc. Flexible Circuit Race is selected by Lap with splits or Simple Lap which racers can on-device compare multiple laps and splits. If they are not enough, don’t worry you can create your own type.

eXtreme 10Hz Log rate

LT-Q6000 supports 10Hz Log to calculate the position of your vehicle ten times per second which is highly accurate for extreme racing sports. With high-sensitivity GPS and AGPS assisted, Q6000 is a stand-alone device which is very powerful and easy-to-use without hassle setting up. It can be also functioned as Data logger to log your travel route by either 1, 5 or 10Hz.

Built-in G-sensor

Q6000 is built-in G-sensor to plot G-force distribution and function Auto Start trigger. Q6000 support various start trigger modes by G-sensor, 5-second timer, 3-second timer and push-and-go. Just easy and Go!

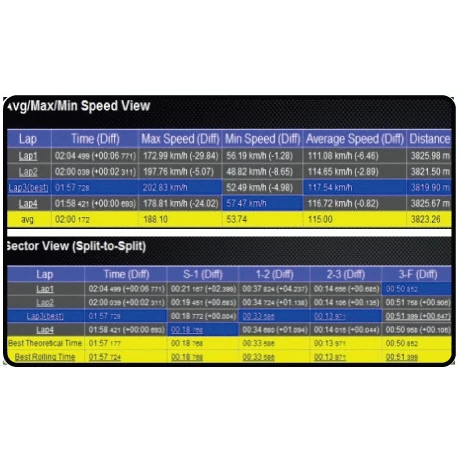

Racing Analysis by Tables

Compare up to 3 Laps

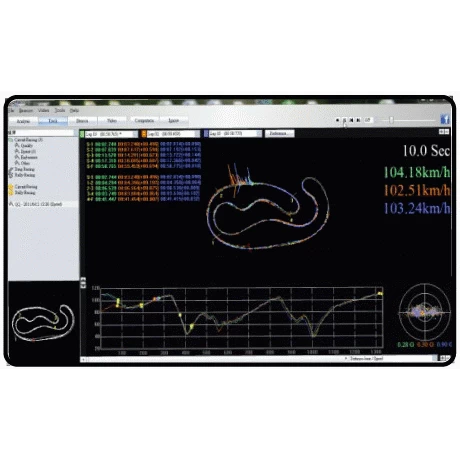

Video Integration and Playback

2GB Large memory

You will not run out of memory with this device. Its history database is well organized as Calendar and table type for easily review.

Function Capability:

eXtreme 10Hz Log to record 10 times per second
Real-time perform and display Lap Timing analysis
2.4” True color and wide display to illustrate racing data precisely
Real time Lap/Spilt/Sector Comparison
Multi-Function Device – Lap Timer and GPS Logger
Start-Run by Push-and-Go, Timer, or Auto Trigger
Diversified Drag Race modes selected by speed/distance and kph/mph
Flexible Circuit Race selected by Lap with splits or Simple Lap
Performance Test On-the-Go
2GB Large memory capacity never worry full memory
History database well organized as Calendar and table type for easily
 review
Flexible Track Manager – On-Device created to User track, and QRacing Sync to Shared track
G-force meter to plot G-force status
Smart speedometer to show real-time speed information
Device configurable such as unit, backlight, brightness, time zone, or time
 format
Support On-Device Export to KML, CSV or GPX files
Hardware:

Adopt MTK II chipset with high sensitivity -165dBm and 66-Channel
tracking
2.4” (320×240) TFT Color display with 65K color
Ultra lower power consumption up to 10hrs operation (under LCD backlight
 on)
Log rate up to 10Hz excellent for High speed Racing (*1)
Including 8 Function buttons – 4 Direction Buttons (Up/Down/Left/Right)/
Back, Enter, Mulit-function, and Power Buttons
3 LED Indicators – Green for Screen Power Saving, Orange for Charging, and Red for Alert
Built-in G-sensor for G-force measurement and Auto Start trigger
Built-in 2GB large memory inside
Device recognized as USB removable disk for data access with computer
conveniently
Raise beeper function to notice some status of device
IPX-3 water resistance
Less than 15-Sec. AGPS fix support to realize faster TTFF and positioning under warm start
Mini-USB interface for charging, data download and firmware update
Firmware upgradable
Device Dimension (LxWxH): 100 x 59 x 28mm
Device Weight: 107 grams (Mounting bracket excluded)
